Digital Menu Board 55 inch E6 series
feature product
With the Yoda information platform and professional security protection, information dissemination becomes more intelligent and reliable.
* All images in this page are for illustrative purposes only.

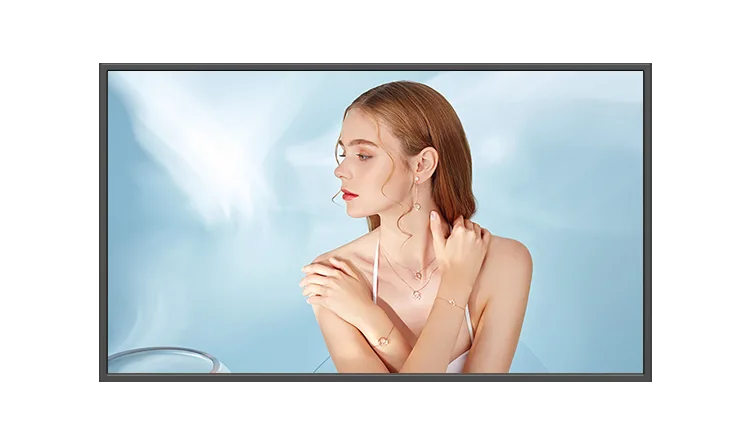

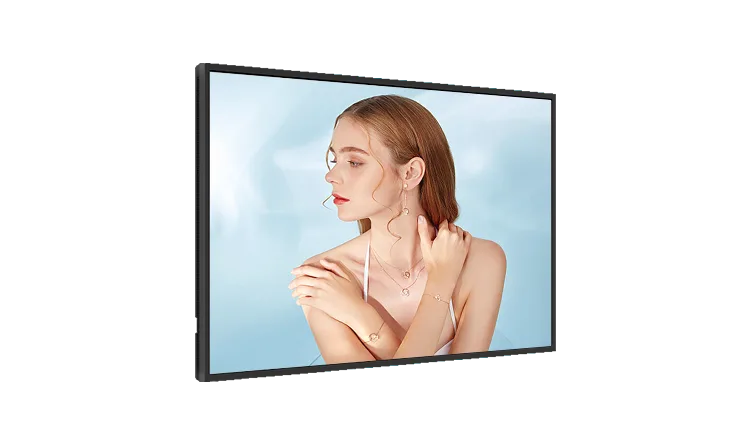

Ultra-narrow four-sided equal-sided design
Digital Menu Board 55 inch The left/right/top/bottom bezels are only 6.9mm, which is beautiful and elegant. The immersive narrow bezel design makes the picture blend into the environment. The design is beautiful in form and integrated into the scene.
Smart split screen
Users can freely choose from various split screen modes, with multiple built-in modes available. Custom area split screens are also available, enabling multi-area, multi-functional advertising displays.
video playback
Picture playback

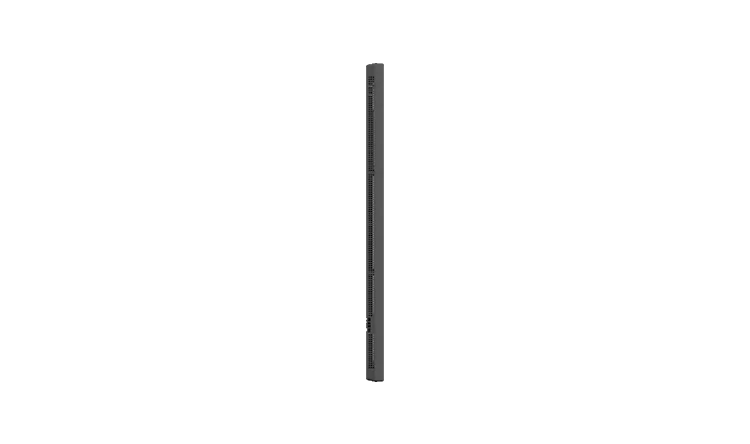

Ultra-thin overall architecture

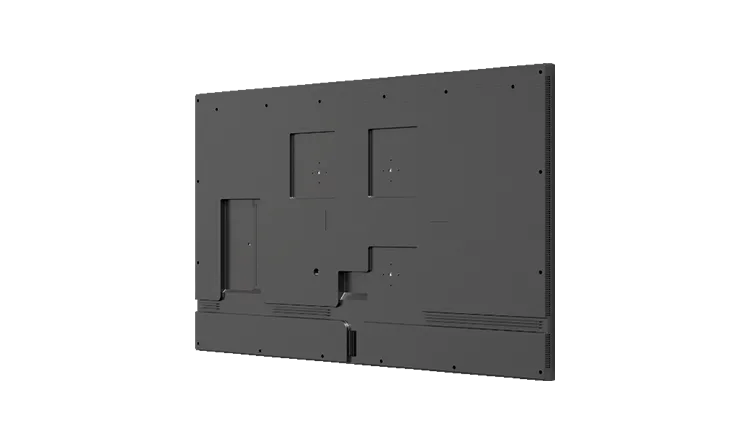

Utilizing a unique backplate mold design, the overall thickness is only 28.5mm, saving installation space.
Landscape and portrait display
Supports both landscape and portrait installation to meet various usage scenarios; images and videos can be displayed in both landscape and portrait modes.
Product parameters and specification table
Display parameters | LCD Screen Size | 55 inch |
|---|---|---|
| Display Area Size | 1209.6(H)×680.4(V)mm | |
| Resolution | 3840×2160 | |
| Response Time | 8ms | |
| Viewing Angle | 89/89/89/89 | |
| Aspect Ratio | 16:9 | |
| Refresh Rate | 60Hz | |
| Color Spectrum | 1.07B(8bit) | |
| Color Gamut (sRGB) (Typ) | 100% | |
| Contrast Ratio (Typ) | 1200:1 | |
| Backlight Type | ELED | |
| Screen Brightness (Typ) | 500cd/m² | |
| Lifespan | ≥30000 hours | |
Android system configuration | System Version | Android 14.0 |
| CPU | Quad-core Cortex-A73 (MT9679) | |
| Clock Frequency | 1.5Ghz | |
| GPU | Mali-G52 MC1 | |
| RAM | 4G (8G optional) | |
| ROM | 32GB (16GB/64GB/128GB optional) | |
Wireless | 2.4G/5G (WIFI6 optional) | |
| Bluetooth module: BT-5.0 | ||
Input/output peripheral ports | HDMI In | 3* HDMI2.1 terminal |
| USB | 2*USB3.0 terminal | |
| Type-C | 1 * Type-C terminal | |
| RJ45 | 1* RJ45 10/100M/1000M Ethernet port | |
| Earphone Out | 1 * Standard 3.5mm terminal | |
External dimensions and packaging specifications | Shell Material | plastic |
| Shell Color | Black | |
| Overall Dimensions (Length * Thickness * Height) | 1237.9*28.5*710 mm | |
| Packaging Dimensions (Length * Thickness * Height) | 1350*120*820 mm | |
| VESA Mounting Specifications (Length * Width) | 200×200mm | |
| Net Weight | 17.ZKG | |
| Gross Weight | 21.5KG | |
Packaging accessories | Remote control | X1 |
| Instruction manual | X1 | |
| Certificate of conformity | X1 | |
| Power cord | X1 | |
| Wall mount | X1 |
